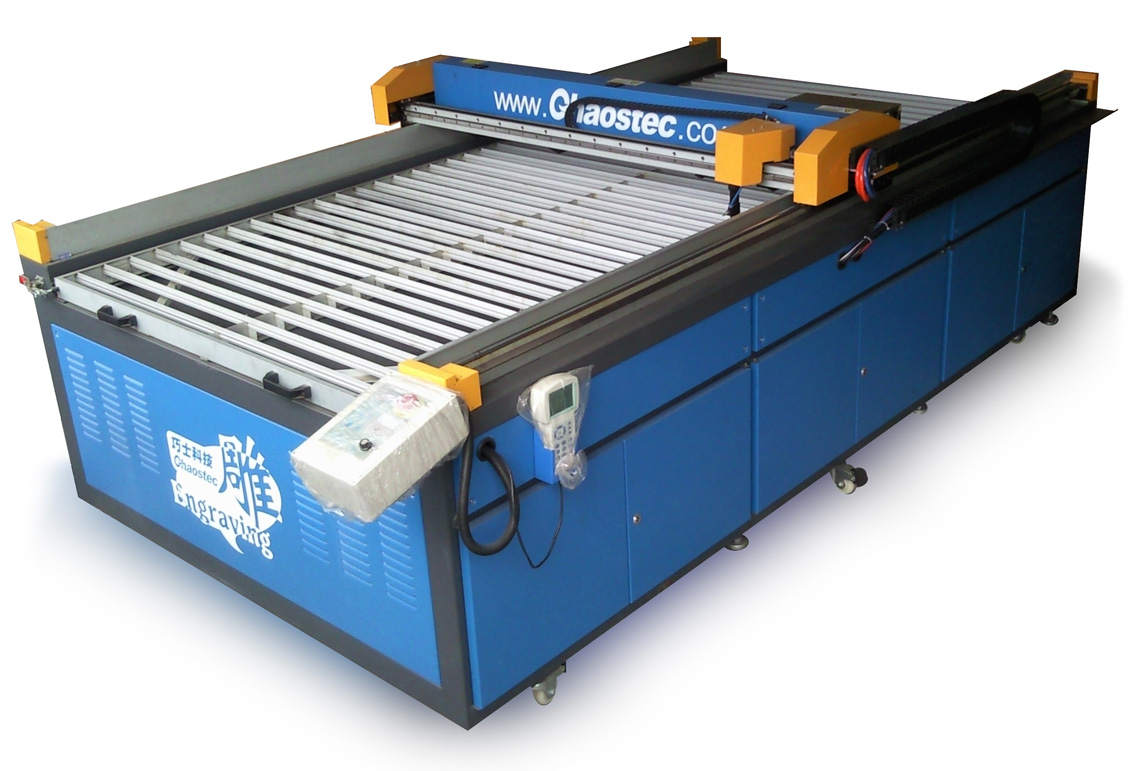

Configure
higher power laser tube
DSP controlling system, rich functions, can effect engraving on plane,
gradient engraving by 360 degree
cutting and drilling holes etc
Owns functions of restoring from power off, continuation on break point
Transmit files directly in CorelDraw, AutoCAD etc

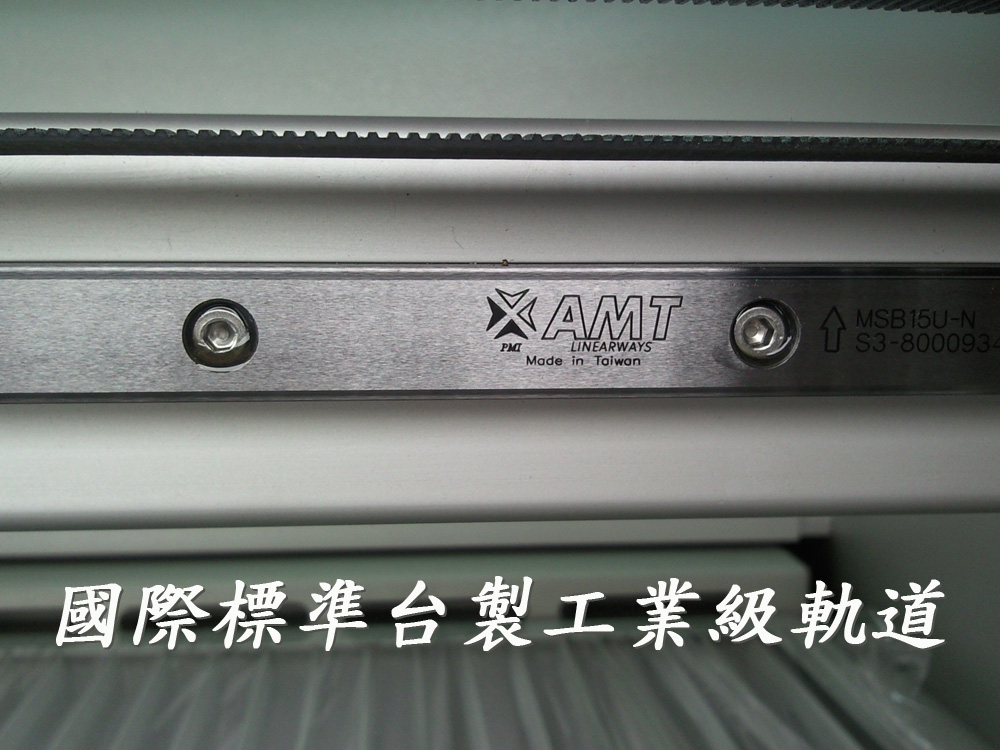

Adopt international linear rail, more precision
Applicable materials
:
wood
.
bamboo .
organic glass .
crystal .
plastic .
garments .
paper.
leather.
rubber.
ceramic .
glass and other nonmetal
materials
Advertise ment upholster vocation /Sign brand making .Construction model manufacture
Archaize books making / Stamper making / Crafting making

|
Item\Model |
Co2-6040 |
Co2-9060 |
Co2-1290 |
Co2-1800 |
Co2-2500 |
|
Overall Dimensions(WxDxH) |
1050 x 810 x 1010 mm |
1300 x 800 x 1250 mm |
1430 x 970 x 1250 mm |
2020 x 2420 x
1480mm |
2020 x 3120 x 1480mm |
|
Working Area(WxD) |
700 x
500 mm |
900 x 600 mm |
1200 x 900 mm |
1300 x 1800 mm |
1300 x 2500 mm |
|
Laser power |
60W |
60W |
80W/100W
/120W
|
100W/120W/150W |
100W/120W/150W |
|
precision
|
< 0.025 mm |
|
Repeat precision |
< 0.1 mm |
|
Computer Communication |
RS 232 & PLT |
|
Engraving Speed (Max) |
60,000mm/min
|
|
Minimum Carving
Size |
Chinese Carve- 1.5mm
Cut- 3mm
English Carve - 0.8mm is cut- 2mm |
|
Power Supply |
AC 220V / 60HZ |
|
Software supported
|
ArtCut, CorelDraw, PhotoShop, AutoCAD
|
|
Graphic format supported
|
BMP, HPGL, JPEG, PLT, DST, DXP, DXF, DWG, and CDR, AI
|
|
laser lens |
USA Ⅱ-Ⅵ INFRARED |
|
Cooling mode
|
Water-cooling and protection system
|
|
Optional Spare Parts
|
Up-down clump, Rotary System, Honeycomb table, Metal Laser Tube
|
|
Recommended Spare Parts
|
Laser Tube and Lens
|
|
Net Weight |
200 Kg |
310 Kg |
450 Kg |
1000 Kg |
1100
Kg |
|
special machine |

 |
SAMPLE
model making
acrylic
 precise model
image carving
wooden carving
bamboo carving
 cloth

tile
matrix

carton
mark paper

leather

panel
decoration
|
