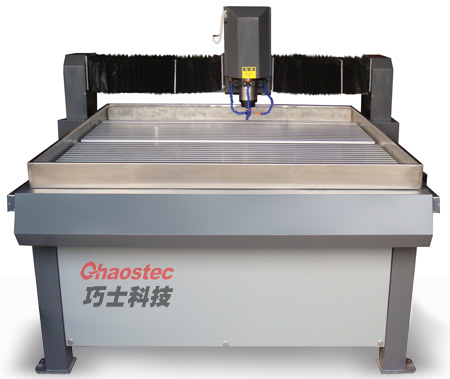

迷你小型CNC雕刻機H-300 C3000 SC

Item\Model

300C

H-300C

900C

1300C

2500C

3000C 5000C

axis motion(mm)

300 × 250

320× 240

700 × 900

1300 × 1300

1300 × 2500

2000 × 3000 3000 ×5000

Z axis motion

80mm

80mm

90mm

150mm

150mm

200mm 200mm

Table size(mm)

290 × 240

325 × 270

800 x 1270

1400 × 1800

1750 x 3000

2450 × 3500

3450 × 5500

Max.speed

4200mm/min

7000mm/min

12000mm/min

18000mm/min

Resolution

0.1mm

0.025mm  0.025mm

Repeat resolution

0.1mm

0.05mm  0.05mm
Processor DSP/frequency 160MHZ

Interface

RS 232

USB

Flash memory

2MB

1G

Plotting instrument

HP-GL / G-Code

engraver software ARTCAM、Type3、MASTERCAM、CASMAT,WINTAI、CAXA

Designed for

Windows 98 / 2000 / XP / 7

Power supply AC220V±10%

Power consumption

100W

500W

1200W

1300W

2500W

3000W

DC brushless spindle

800W

800W

1200W ~

2200W ~

3000W ~

3000W ~

Spindle rotary speed

0~24000 rpm

Weight

75 kg

125kg

350 kg

600 kg

980kg

1500kg 5000kg

Operating environment

           Temperature:+5C~+35CHumidity:30%~75%



Special size

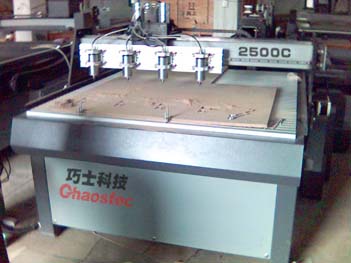

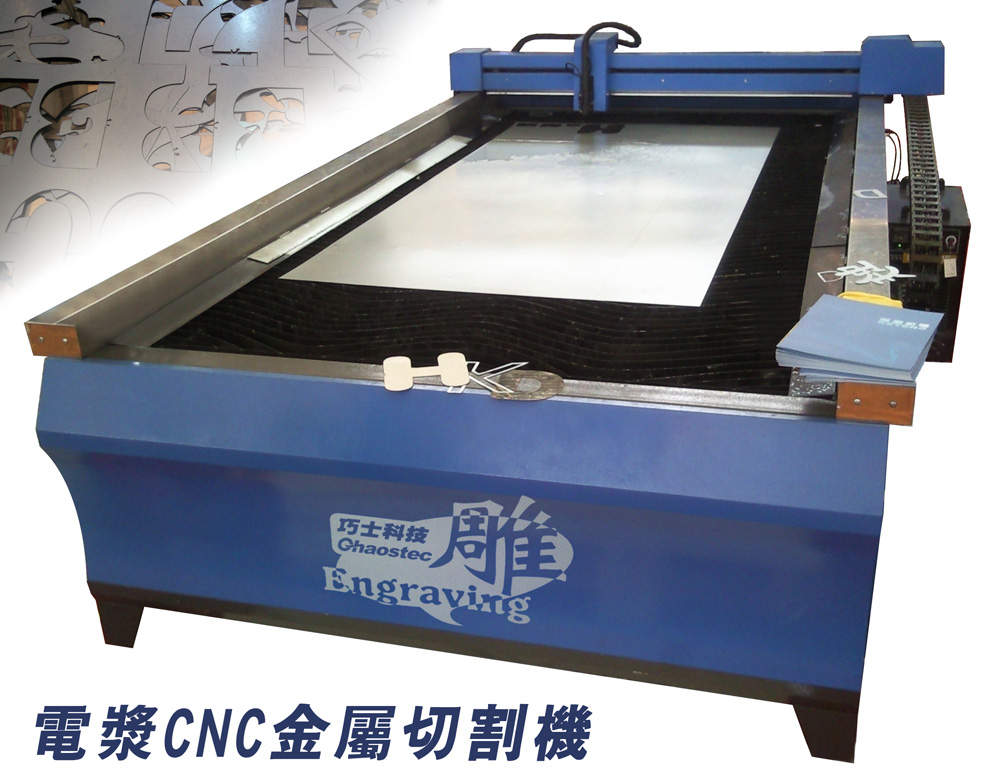

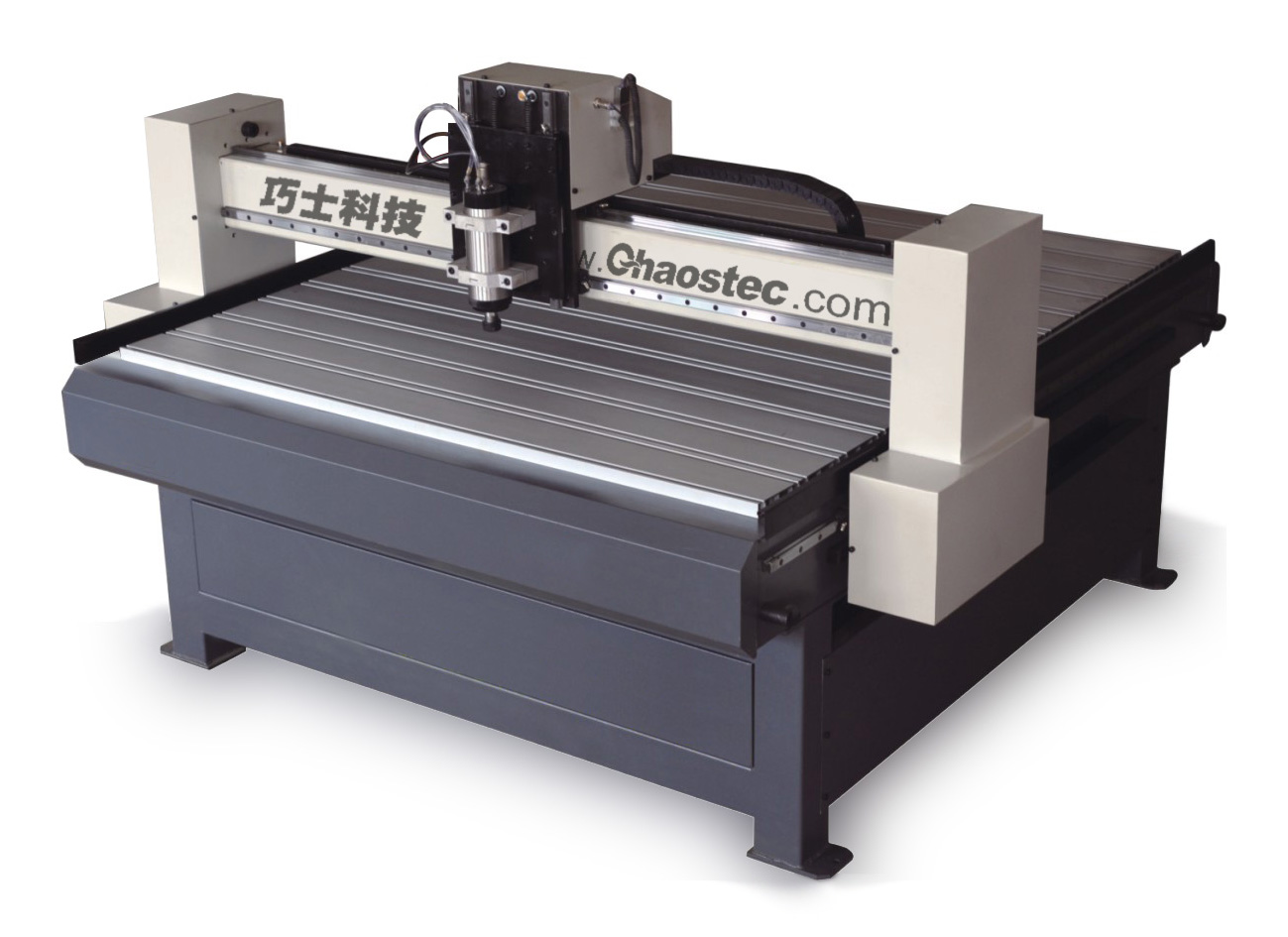

CNC2500C型四頭訂製機電漿CNC金屬切割機CNC1300C型刻玉石水槽訂製機CNC1300C型二頭訂製機圓周旋轉軸型300C雕刻機CNC雕刻機旋轉軸刻鋁棒演示

模具章專用機 CNC5000C組裝過程自動換刀CNC雕刻機CNC3000C雕刻機真空吸附台面製作過程 特殊規格CNC雕刻機刻木棒演示

雙主軸大型圓柱CNC雕刻機

High-Performance Computerised CNC Engraving Machine

FREE Engraving Software
1 Year Australian Warranty

High Performance CNC Engraver that can be used for Sign Making, Mold Processing, Seals Processing, Art Crafts Processing like: metal sign plate, copper or zinc mold, stainless steel plates, copper seal, aluminium, wood, marble, and much more.

Turn your Design into Reality!
(Design your artwork from your PC, using engraving software)

TYPE3 Engraving Software

WE SELL ONLY GOOD QUALITY PRODUCTS!

VERY LOW PRICE GUARANTEED!!


Item Condition: Brand new in original packaging

Features:

  • Adopts linear and adjustable bearing device in X, Y, Z direction, assuring no gap between slide parts of bearing and linear.
  • Whole cast iron body, milling surface, more stable when working for a long time.
  • Rolling ball screws in X, Y, Z direction from Germany to ensure less vibration.
  • Good for processing small stiff working pieces.
  • 400W inverter-driven spindle motor, strong power, very quiet.
  • Adjustable speed, curve line and straight line speed are controlled independently.
  • High data transmission ratio.
  • Application: Can be applied for Mold Processing, Seals Processing, Art Crafts Processing like: metal sign plate, copper or zinc mold, stainless chest plates, copper seal, aluminium, wood, marble, and much more.

Inclusions:

  • Computerised CNC Engraver 2
  • Artcut Engraving Software (or upgrade to TYPE3 Engraving Software for free !)
  • Various Engraving Blades
  • Blade Holder
  • Vice
  • Ring-Mat for Vice
  • Seal Holder
  • Tools
  • Cleaning Brush
  • Cables
  • Instruction CD
  • User's Manual

Warranty:

1 year warranty from us (exclude consumables).

We also do repairs after the warranty period

(labour, shipping, and parts fee applied).

Additional Info:

We supply parts at low prices anytime when you need them.

TYPE3 engraving software  following file formats:

CNC factory     300C engraver factory

  • Import:
    • BMP (*.bmp, *.dib)
    • DIG (*.dig)
    • DXF 2D (*.dxf)
    • DXF 3D (*.dxf)
    • EPS (*.eps, *.ai)
    • HPGL (*.hpg, *.plt)
    • IGES (*igs)
    • ISO (*.iso, *.u)
    • Digitized ISO (*.iso, *.u)
    • STL (*.stl)
    • TIFF (*.tif)
    • Vision Numeric (*.vnd)
    • Geometric Tool Path (*.p??, *.0)
    • Window Metafile (*.wmf)
    • Cyberwar (*.cyb, *.cir, *.lin)
    • 3D Studio ASCII (*.asc)
    • Vision Numeric TypeArt (*.vna)
    • JPEG (*.jpg)
  • Export:
    • DXF 2D (*.dxf)
    • DXF 3D (*.dxf)
    • EPS (*.eps)
    • HPGL (*.hpg)
    • HPGL Vector (*.hpg)
    • IGES (*igs)
    • ISO (*.iso)
    • ISO Vector (*.iso)
    • Tool Path (*p??)
    • VNV (*.*)
    • Symbol (*.syb)
    • STL ASCII Files (*.stl)
    • STL Binary Files (*.stl)
    • TypeArt (*.vna)

☆☆☆☆☆ Send Us Ur Message ☆☆☆☆☆

Ur Name  Ur Phone Number  Receive Adress

Ur E-mail  Want To Buy

  MDF board

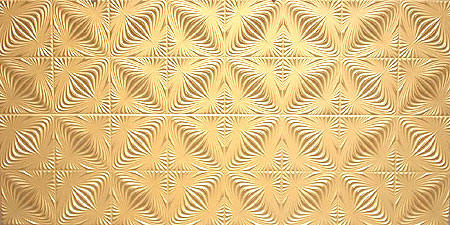

以四方連續圖案搭配特殊刀頭及Z軸起伏做出的波浪板   以四方連續圖案搭配特殊刀頭及Z軸起伏做出的波浪板

wood art     CNC雕刻機木工應用  木雕花  浮雕木刻灰階圖檔 浮雕木刻 浮雕木刻  圓柱CNC雕刻機雕花瓶

floor       acrylic  CNC雕刻機壓克力工藝   stone         mold  CNC雕刻機模具製造

silver

modelCNC雕刻機建築模型製作   embossment CNC雕刻機浮雕藝術    metalCNC雕刻機燙金版製作   fiberglass fiberglass

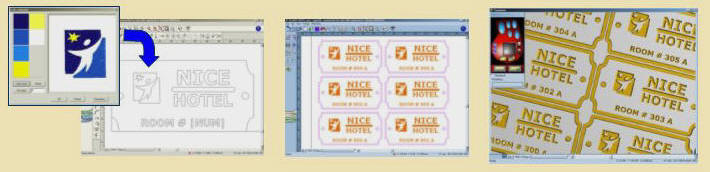

CNC雕刻機銘牌製作流程

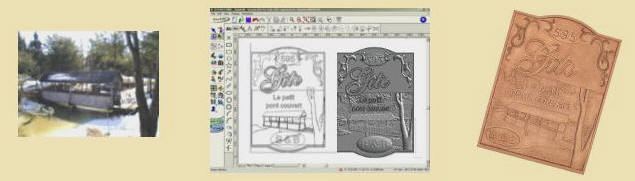

CNC雕刻機浮雕製作流程
